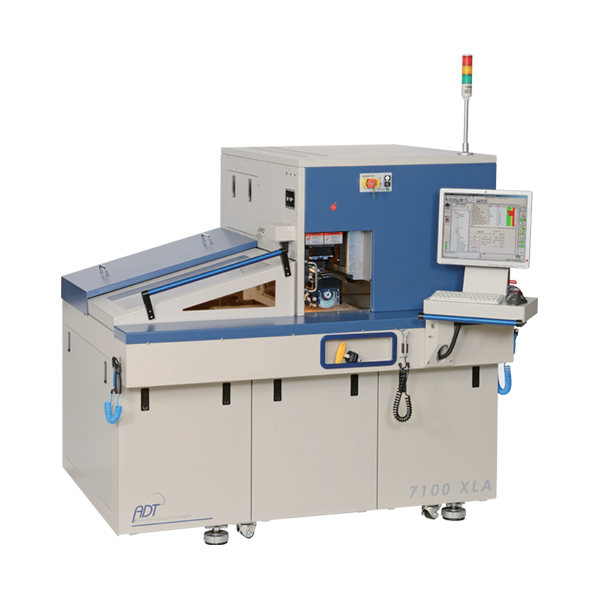

7100XLA

Unique Solutions

For large PCB or RF devices

  • Large dicing area up to 24" × 18"
  • 2" or 4" configuration
  • Easy access for maintenance
  • Customization chucks, tape process with or without clamps
  • Adjustable rotating monitor + USB hub
online consultation

Tel：

021-50939293
PDF
Product Introduction Machine Feature Specification

Product Introduction

For large PCB or RF devices

Machine Feature

  • Large dicing area up to 24″ × 18″
  • 2″ or 4″ configuration
  • Easy access for maintenance
  • Customization chucks, tape process with or without clamps
  • Adjustable rotating monitor + USB hub

Specification

Workpiece Size 24″ × 18″
Spindle 60K rpm/1.8kW or 4″ 30K rpm 2.5KW
Blade Size 2″~3″ or 4″~5″
Y-axis Controller Linear Encoder / Y-axis
Resolution 0.1 μm
Cumulative Accuracy 1.5 μm
Step Accuracy 1.0 μm
X-axis Air Slide
Z-axis Resolution 0.2 μm
Repeatability 1.0 μm
θ-axis Repeatability 4 arc-sec
Travel 380°
Electrical 200-240VAC，50/60Hz，Single-phase
Dimensions 1670 × 1256 × 1600（mm）
Weight 1000 kg
